● WP-S = 无缝钢管材质
▲ WP-W = 焊接钢管/钢板材质

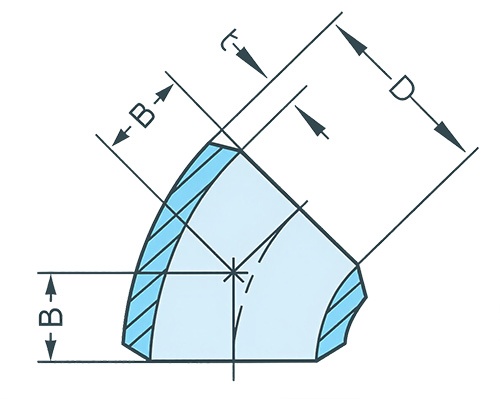

| 公称通径 | 壁厚 | 尺寸（毫米） | 近似重量 | 304L | 316L | ||
| D | t | B | 公斤/件 | ||||
| ½” | 10s | 21.3 | 2.11 | 15.9 | 0.030 | ● /▲ | ● /▲ |
| 40s | 21.3 | 2.77 | 15.9 | 0.035 | ● /▲ | ● /▲ | |
| ¾” | 10s | 26.7 | 2.11 | 19.0 | 0.030 | ● /▲ | ● /▲ |
| 40s | 26.7 | 2.87 | 19.0 | 0.040 | ● /▲ | ● /▲ | |
| 1” | 10s | 33.4 | 2.77 | 22.2 | 0.090 | ● /▲ | ● /▲ |
| 40s | 33.4 | 3.38 | 22.2 | 0.110 | ● /▲ | ● /▲ | |
| 1¼” | 10s | 42.4 | 2.77 | 25.4 | 0.110 | ● /▲ | ● /▲ |
| 40s | 42.4 | 3.56 | 25.4 | 0.170 | ● /▲ | ● /▲ | |
| 1½” | 10s | 48.3 | 2.77 | 28.6 | 0.170 | ● /▲ | ● /▲ |
| 40s | 48.3 | 3.68 | 28.6 | 0.230 | ● /▲ | ● /▲ | |
| 2” | 10s | 60.3 | 2.77 | 34.9 | 0.250 | ● /▲ | ● /▲ |
| 40s | 60.3 | 3.91 | 34.9 | 0.400 | ● /▲ | ● /▲ | |
| 80s | 60.3 | 5.54 | 34.9 | 0.510 | ● | ● | |
| 2½” | 10s | 73.0 | 3.05 | 44.5 | 0.480 | ● /▲ | ● /▲ |
| 40s | 73.0 | 5.16 | 44.5 | 0.770 | ▲ | ● /▲ | |
| 3” | 10s | 88.9 | 3.05 | 50.8 | 0.630 | ● /▲ | ● /▲ |
| 40s | 88.9 | 5.49 | 50.8 | 1.080 | ● /▲ | ● /▲ | |
| 4” | 10s | 114.3 | 3.05 | 63.5 | 1.080 | ● /▲ | ● /▲ |
| 40s | 114.3 | 6.02 | 63.5 | 2.090 | ● /▲ | ● /▲ | |
| 5” | 10s | 141.3 | 3.40 | 79.4 | 1.810 | ● /▲ | ● /▲ |
| 40s | 141.3 | 6.55 | 79.4 | 3.430 | ● /▲ | ● /▲ | |
| 6” | 10s | 168.3 | 3.40 | 95.3 | 2.720 | ● /▲ | ● /▲ |
| 40s | 168.3 | 7.11 | 95.3 | 5.440 | ● /▲ | ● /▲ | |
| 8” | 10s | 219.1 | 3.76 | 127.0 | 5.330 | ● /▲ | ● /▲ |
| 40s | 219.1 | 8.18 | 127.0 | 10.770 | ● /▲ | ● /▲ | |
| 10” | 10s | 273.1 | 4.19 | 159.0 | 9.750 | ● /▲ | ● /▲ |
| 40s | 273.1 | 9.27 | 159.0 | 19.280 | ● /▲ | ● /▲ | |
| 12” | 10s | 323.9 | 4.57 | 190.5 | 13.610 | ● /▲ | ● /▲ |
| 40s | 323.9 | 9.53 | 190.5 | 29.710 | ● /▲ | ● /▲ | |
| 14” | 10s | 355.6 | 4.78 | 222.3 | 18.140 | ▲ | ▲ |
| 16” | 10s | 406.4 | 4.78 | 254.0 | 23.810 | ▲ | ▲ |
| 18” | 10s | 457.2 | 4.78 | 285.8 | 29.940 | ▲ | ▲ |
| 20” | 10s | 508.0 | 5.54 | 317.5 | 49.890 | ▲ | ▲ |
| 24” | 10s | 609.6 | 6.35 | 381.0 | 70.310 | ▲ | ▲ |
